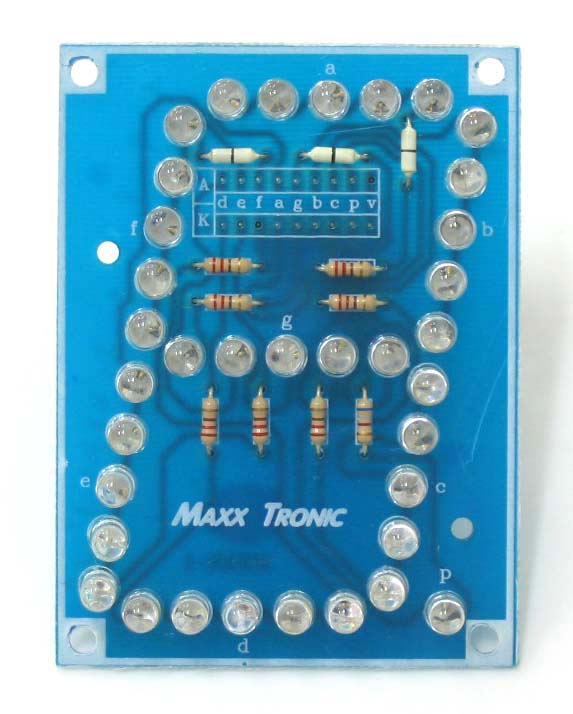

This ultra bright LED is a seven segment display. There are 5 LED's per segment with an additional LED for the decimal point.

Currently Out of stock, special order only

 Detail:
- Display dimensions : 46x75 mm. or 1.78x3 inch.
- PCB dimensions : 63x85 mm. or 2.5x3.3 inch.
- Power supply : 12 Vdc.
- Display used : ultra-bright LEDs.
- Consist : 5 LED’s per segment and a LED’s for the decimal point (p).
- At 12Vdc. A segment current ~ 15 mA.
A decimal point (p) current ~ 15mA.
Total current ~ 120mA.

VICINITY PRODUCT : MXA034 3” NORMAL LEDs
