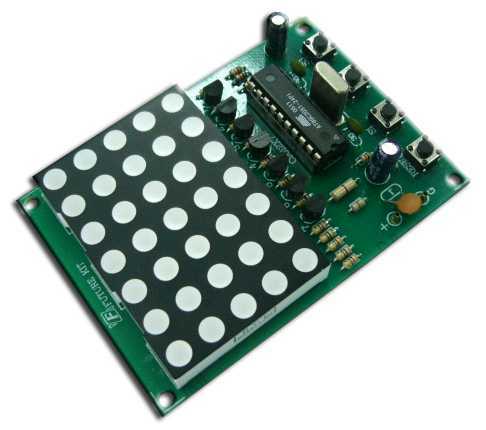

FK174 Animated Sign Board

This kit creates a chasing light circuit with several different display functions.  It has 3 separate functions: chasing from left to right, chasing from right to left, and an alternating pattern of these two directions. The patterns can be set by the individual.

Technical specifications:

- Power supply : 3-5VDC.

- Consumption : 85mA max.@ 3VDC.

- display : 5x7 dot matrix LED's each 5 mm.

- Customizable display patterns

- Length of display : maximum 48 columns and 5 rows

- dimensions of PCB : 2.83 x 3.96 inches

- Recommended housing : FB05

Kit requires assembly by soldering!
