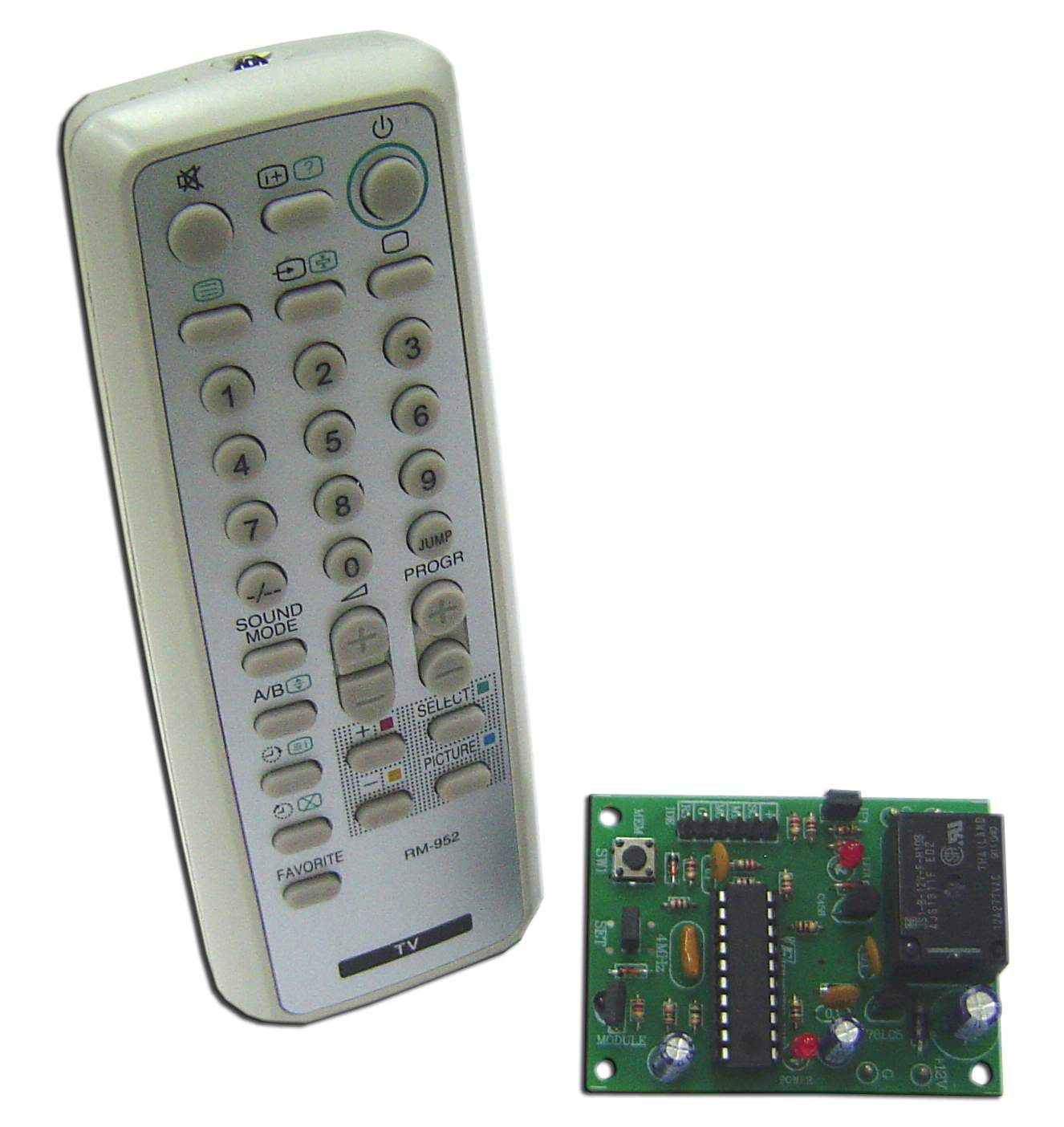

FK440 Infrared Remote Controlled Relay Kit (single channel with remote control)
This infrared remote control is controlling the electric equipment with infrared remote control. It can be used for application such as lamp, fan, etc.
Remote & a Single Relay Board are included, additional relay boards (1 & 5 relay boards available) can be purchased to increase number of channels. Remote can control 10 channels and the relay boards can be easily set up by the user to respond to any button on the remote.
Technical Specifications:
- Power supply : 12VDC (RX) and 3VDC (TX)
- Consumption : max. 42mA. (RX)
- Consumption of standby : max. 9mA. (RX)
- Can be set the button of transmitter by yourself.
- Can be set the operation of relay to be push-on push-off switch or push switch.
- Loading : 1A.
- PCB dimensions : 1.75 x 2.41 in.
- Note: Use only with supplied remote as USA Universal Remotes codes do not work!
Options:
- FK441 Single Channel Relay Board
- FK443 Five Channel Relay Board
- Factory Assembled & Tested
Kit requires assembly and comes complete with circuit board, components, instructions. Requires basic soldering skills and a 15 to 30 watt soldering iron. Solder is included
Another great kit to have fun with from Bakatronics
Now Also available as a factory assembled and tested module! See options
Have fun, that's what it's all about.
