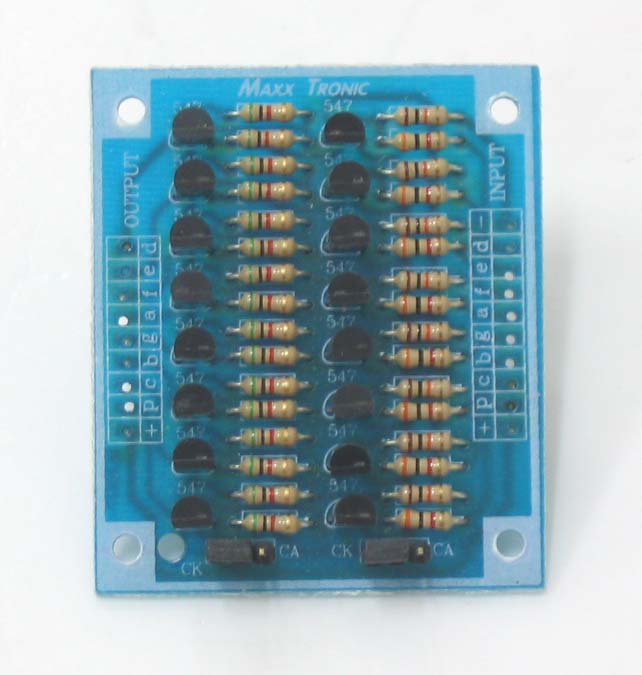

MX007: SEVEN SEGMENT DRIVER

Detail:
-For use driver seven segment display ( 3”,5”,7” and 9” )
-PCB dimensions : 2.32x1.97 inch
-Power supply : 12 Vdc. or 24 Vdc.
-Segment use type common cathode.
-Input voltage : min 4.5 Vdc.(common cathode or anode).

USING:
-Input is used to connect signal from a,b,c,d,e,f,g and p signal.
-Output is used to connect the seven segment display circuit.
