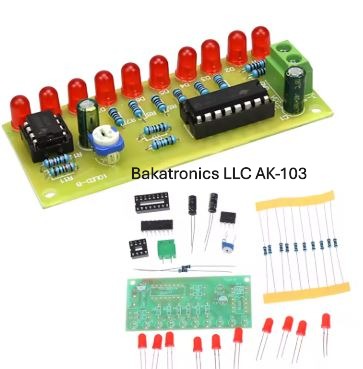

AK-103 10 LED Chaser Kit. Kit makes a circuit that chases 10 Red LEDs in sequence 1 to 10 and then repeats. Adjustable speed controlled by a potentiometer. A great beginner kit.
Circuit board Apprx 1 5/16" x 2 7/8"
Detailed step by step instructions
Schematic included
3-12 volts DC

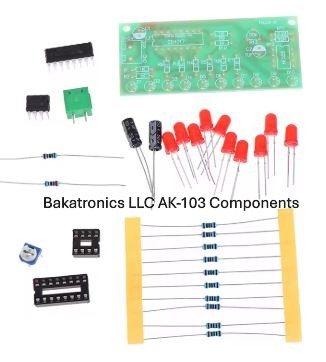

10 5mm Red LEDs
555 Timer Chip
4017 1 of 10 Sequence Chip
Reqires Assembly by Soldering
