Description

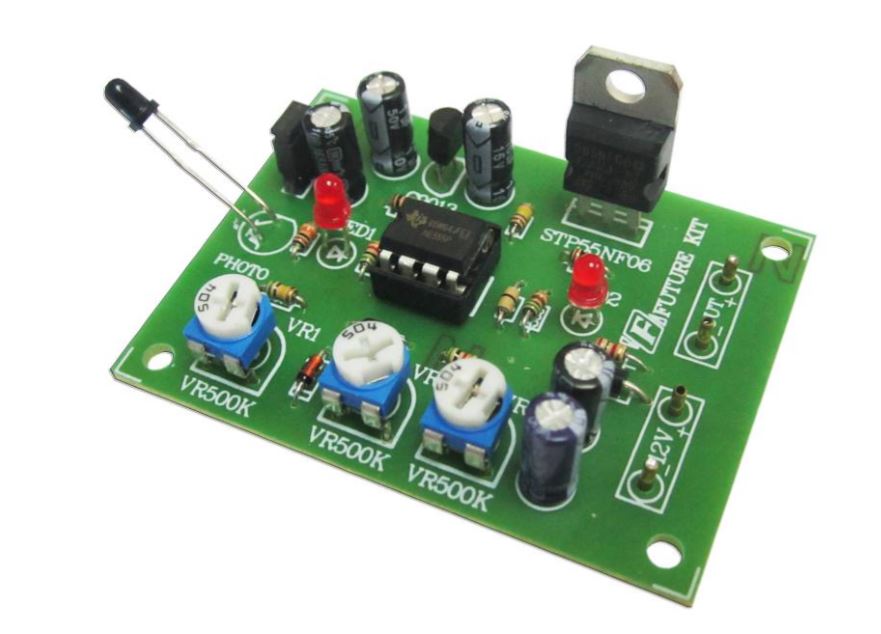

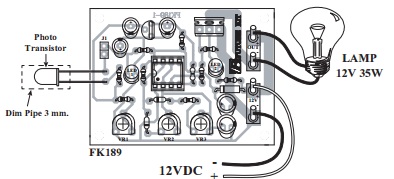

This circuit uses a light sensor to detect when an area is dark, causing an LED and output terminal to activate and begin to pulse on and off. The duration of the pulses can be adjusted by two potentiometers on the circuit board. A jumper on the board may also be removed to produce continuous flashing, bypassing the light sensor. This kit may be used as a navigation light switch, to automatically switch on at night or a caution light on a bicycle.
Product Specificiations
|
Power supply |
12VDC |
|
Current draw |
20mA. (No load) |
|
PCB dimensions |
2.27” x 1.68” |
|
Total load |
35 Watt bulb |
|
Blinking speed (ON/OFF) |
0.5-8 seconds adjustable |
